Configure my Router - Connecting your system, laptop, mobile, and any other wifi enabled devices to your router can be easy for the technical guy but for the nontechnical person can be more difficult, time taking and tedious task. Millions of peoples want to access the internet and router is the device that helps us to provide connectivity to the internet. In this article, i have tried to explain in simpler and easier manner how to configure your home or any other router.

Different router companies launch their product (router) time to time with different features. Some of the router companies are Belkin, Linksys, D-link, Netgear etc.

How to configure my Router

Belkin Router

  1. Make sure your router, modem and your PC are properly connected.
  2. Launch a web browser, enter the router’s IP Address in the Address bar and press ‘enter”. The default IP Address of a Belkin router is 192.168.2.1.
  3. When the home-page is open, Click on “Login”. By default, Belkin wireless routers have no password so when you click on login just click on Submit without entering anything in the password section.
  4. After that, Under internet WAN, choose the Connection type. You should be aware of the connection type you have from your internet service provider, if not please contact your area internet service provider.
  5. In my case, my connection type is dynamic. You can choose your connection type and go further according to that type.
  6. Enter the details provided by your ISP and click the “Apply Changes” button.

You should now be able to connect to the Internet.

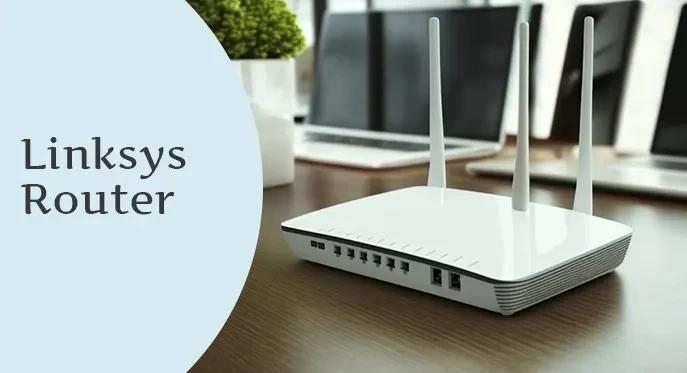

Linksys Router

  1. Make sure your router, modem and your PC are properly connected.
  2. Open any web browser such as Internet Explorer, Mozilla Firefox, Safari etc. Enter “192.168.1.1” in the address bar then press “Enter”.
  3. In next step you will then be asked for your login details. Leave the user name field blank and type “admin” (f you haven't changed it) in the password field then click ok.
  4. On the Setup tab, click MAC Address Clone. This will allow your ISP to recognize the router as the computer with the registered MAC Address. Select Enabled then click on Clone My PC’s MAC.
  5. Once the MAC Address Clone feature is enabled, Internet status should be active. To check the status click on the “Status tab”. Check the Internet IP Address. If it has numbers, this means the router has been properly configured but the Internet IP Address values are showing up 0.0.0.0, click on “Release IP Address” then the “Renew IP Address buttons”.

You should now be able to access the Internet.

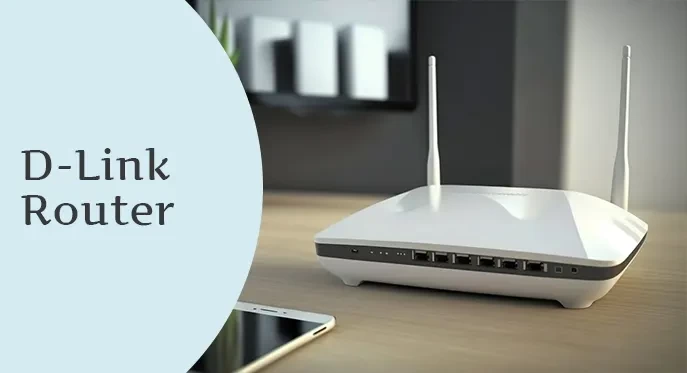

D-Link Router

  1. Make sure your router, modem and your PC are properly connected.
  2. Open your Internet browser and enter 192.168.0.1 into the address bar. You should be prompted with the D-Link Quick Router Setup Wizard, Click “Next” to begin. This wizard will only appear at the first configuration. If your router has been configured previously, you will need to reset it to go through the setup.
  3. The Router will perform a scan to determine the type of internet service you have. If successful, the Internet Setup will be skipped.
  4. If the scan was not successful, you will be prompted to select your Internet type. Select DHCP Connection (Dynamic IP Address).
  5. Next is your Wireless Settings. Enter a “New Wireless Network Name” and “Password”.
  6. Enter a strong password for your router. This password is needed when you want to log into the router configuration setup page.
  7. Lat step is select your “Time Zone”. The summary of your wireless settings is displayed. This includes your wireless network name and your wireless password. Click Save.

Now you should be able to access the Internet.

Follow these steps according to your router type and stay connected to the internet.
